- Big Bag disinfection up to 99.9%
- No chemicals
- Fully automated process
- Integrable
- Hygiene design
- Including Air knife and exhausting system
UV Material Air Lock for Big Bags

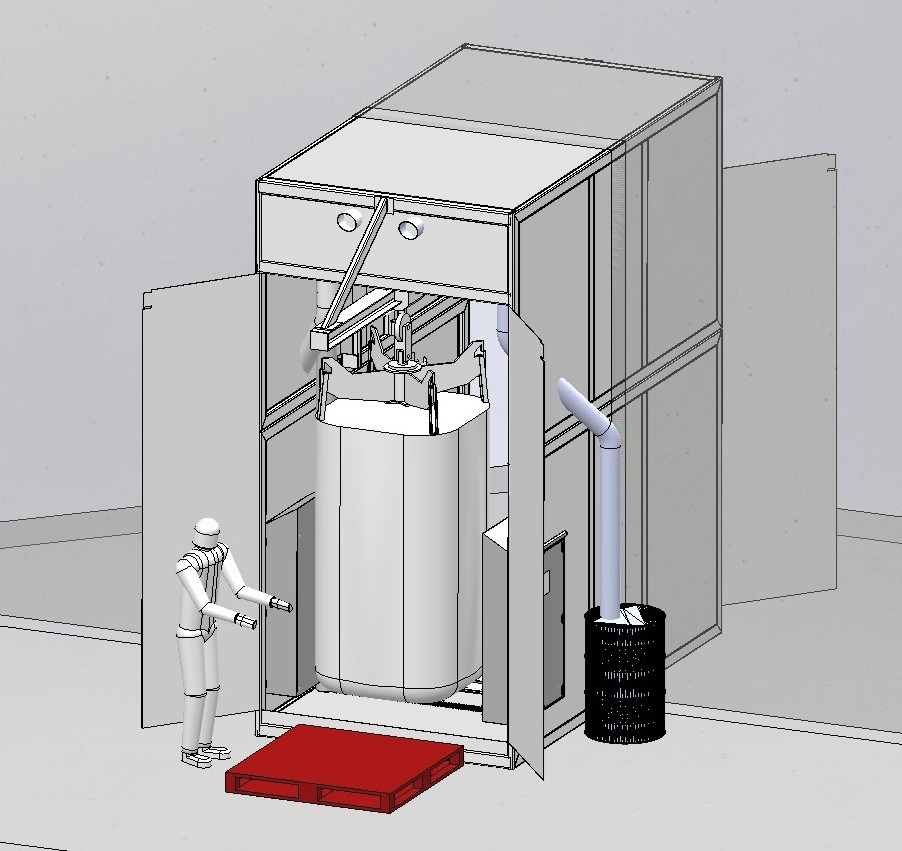

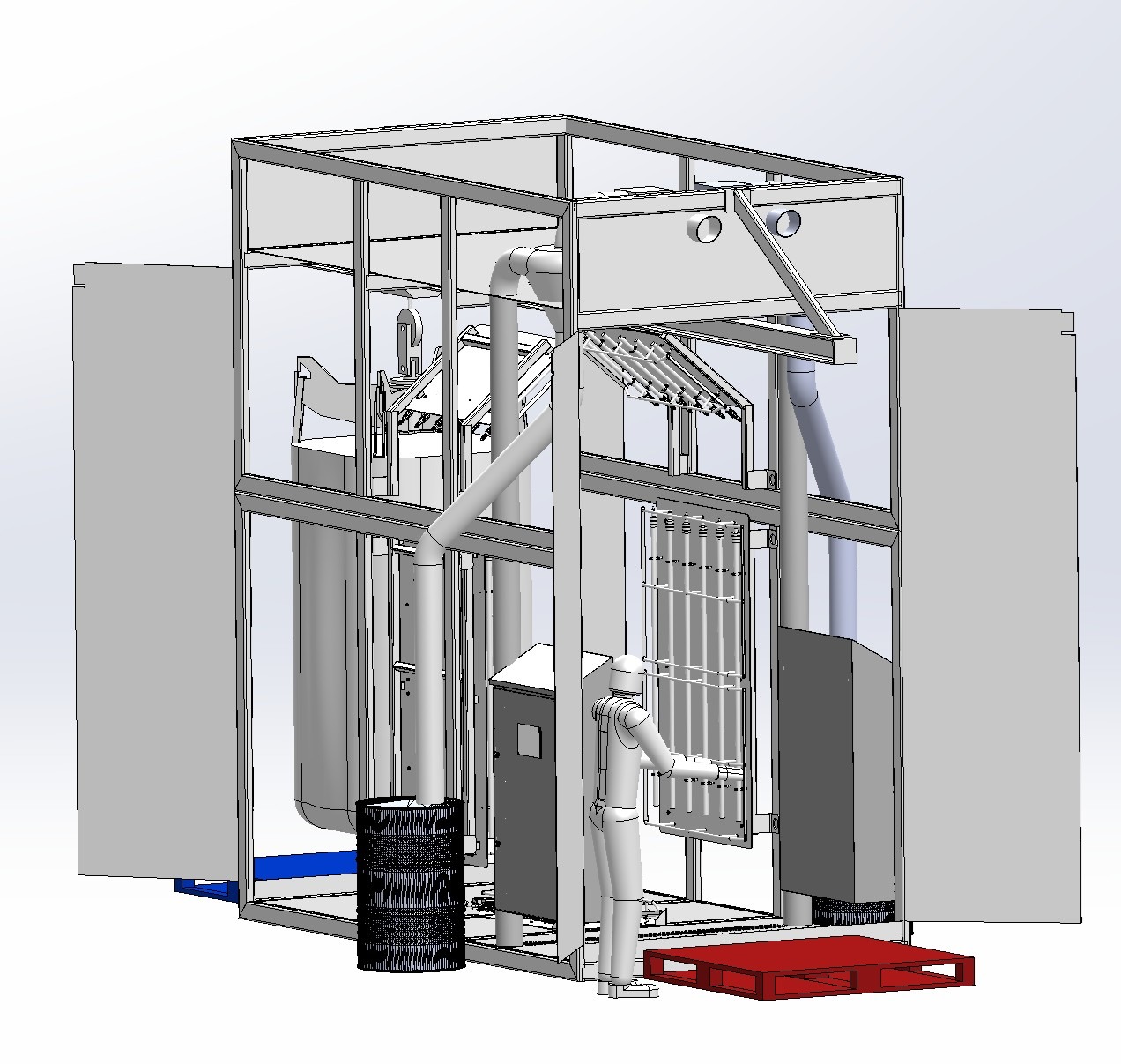

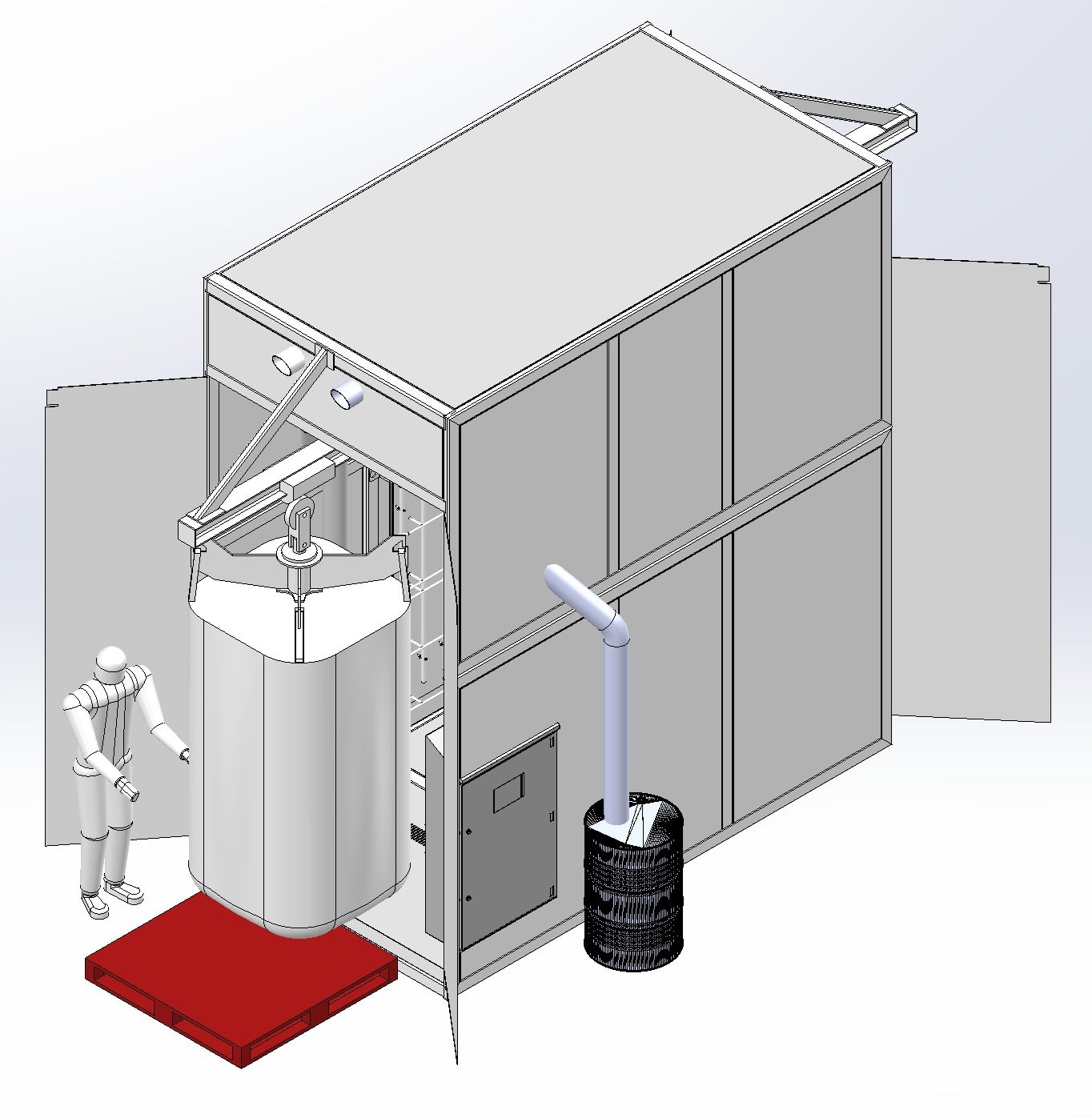

UV Material Air Lock for big bag disinfection
The UV MAL offers the possibility to clean big bags from all sides and disinfect them with UV light up to 99,9%
The big bag is fixed at the hoist of the system. In a fully automated process it will be moved through the closed material air lock, while it will be cleaned with the integrated air knifes and afterwards disinfected with the UV light.
After the cleaning and disinfection process it will be moved to the high care zone.
Areas of application
Technical data
| UV MAL | |
|---|---|
| Rated voltage | 400V, 3 phasig 50/60 Hz |
| Rated power | 11 kW |
| Dimensions (L x W x H) | 4500 x 2000 x 3000 mm |
| Ozone production (185 nm) | No |
| UV-C power (254nm) | 1690 W |
